PDU-13SS

Description:

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode. PDU-13SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery

Gallery

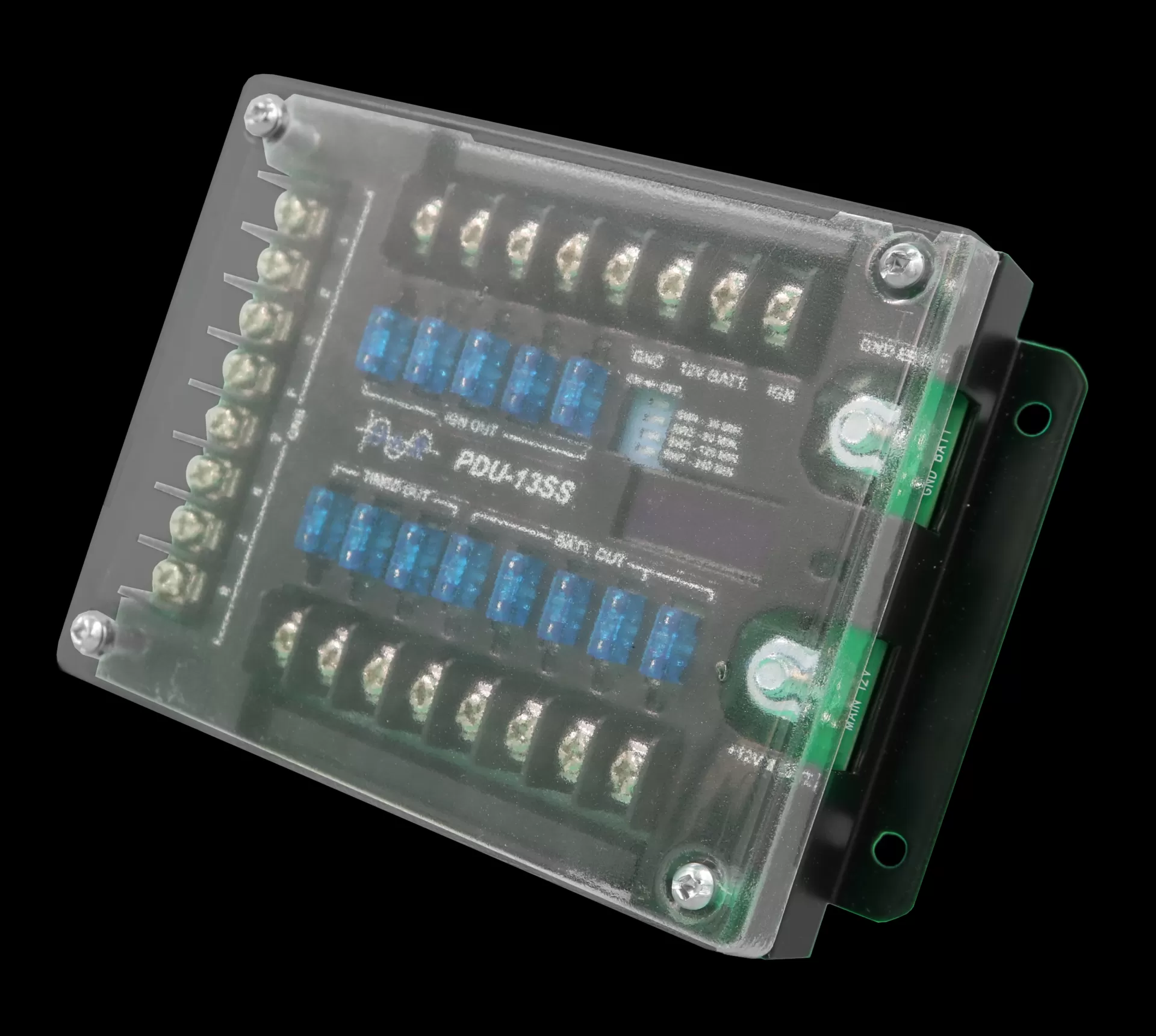

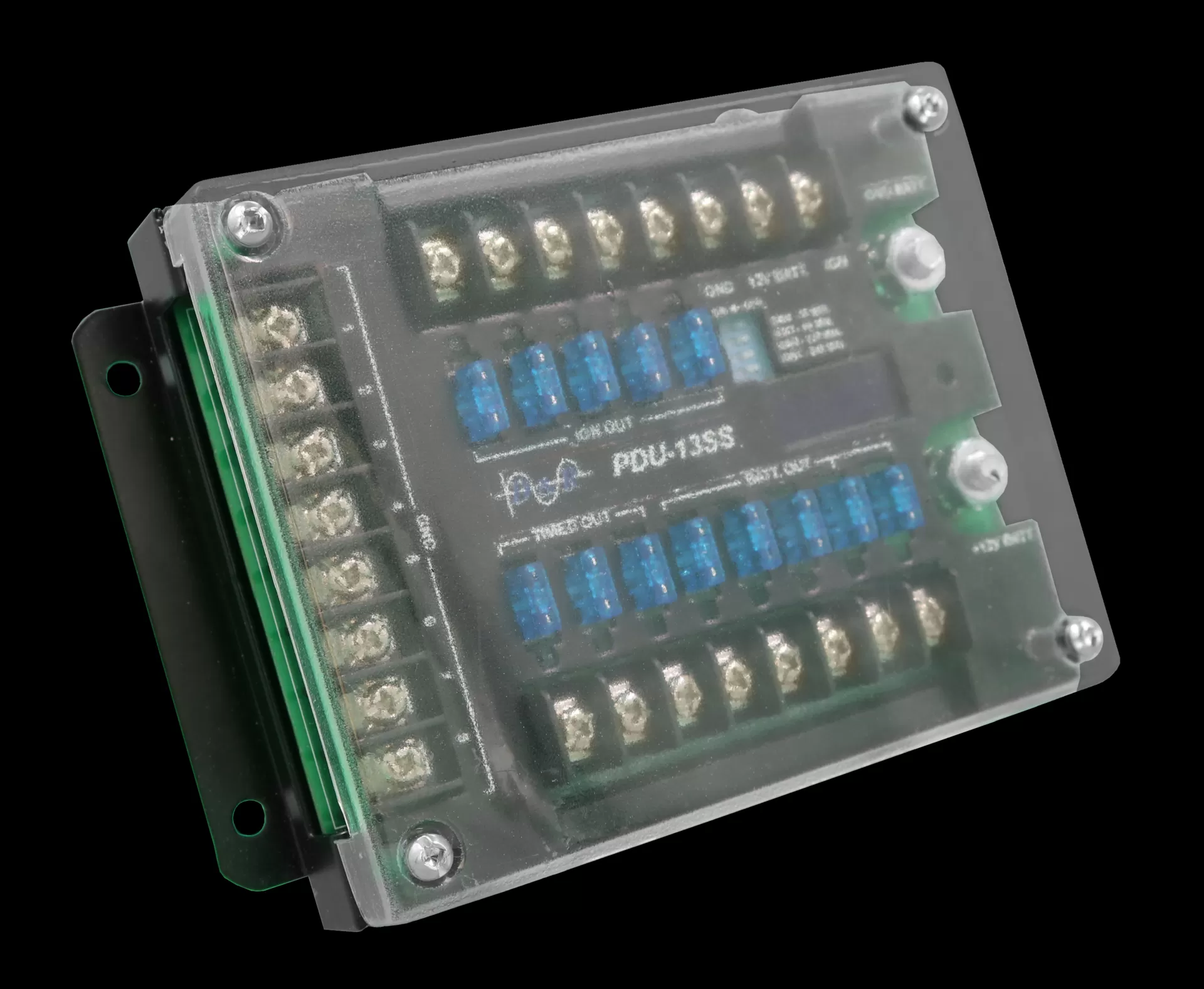

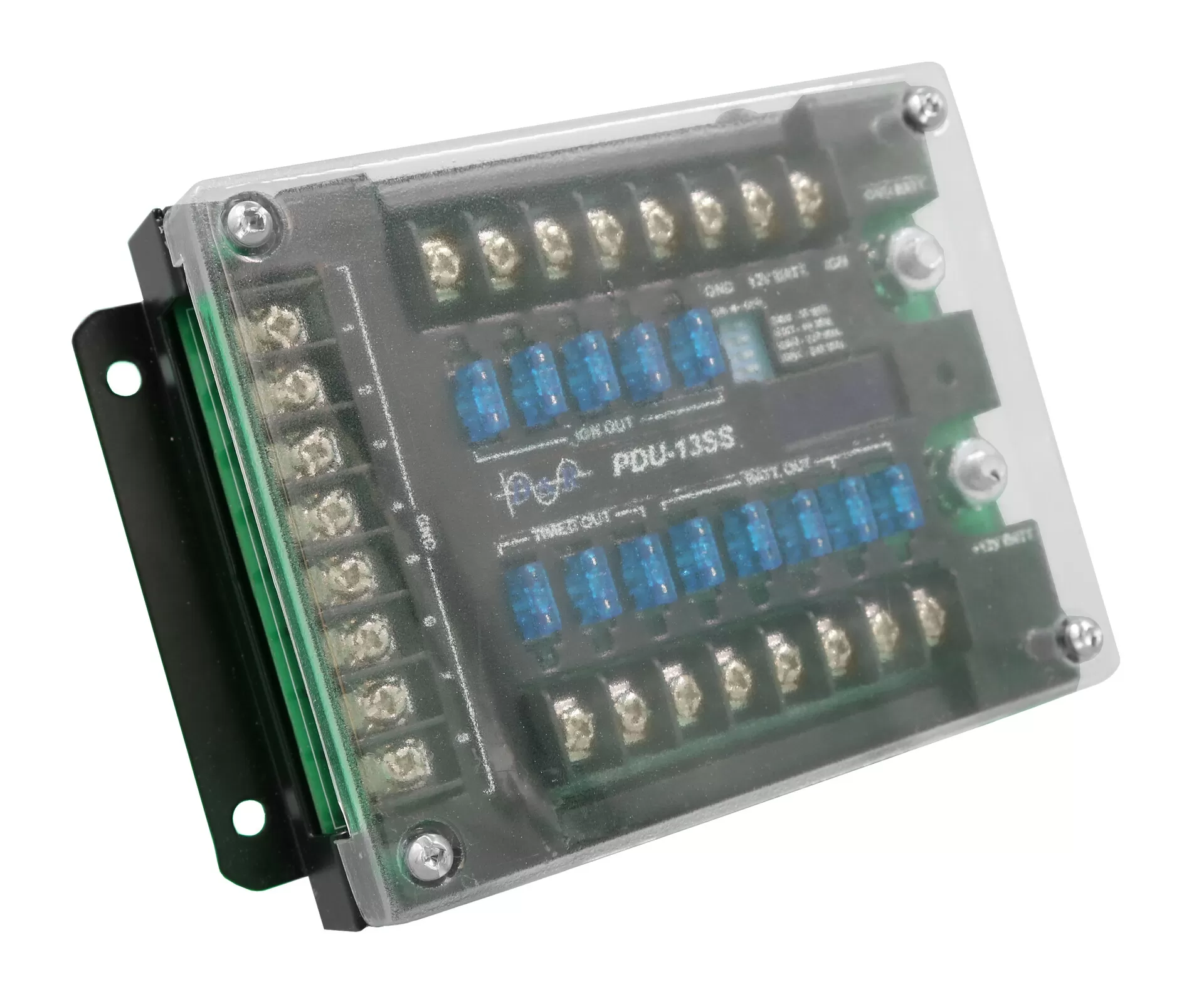

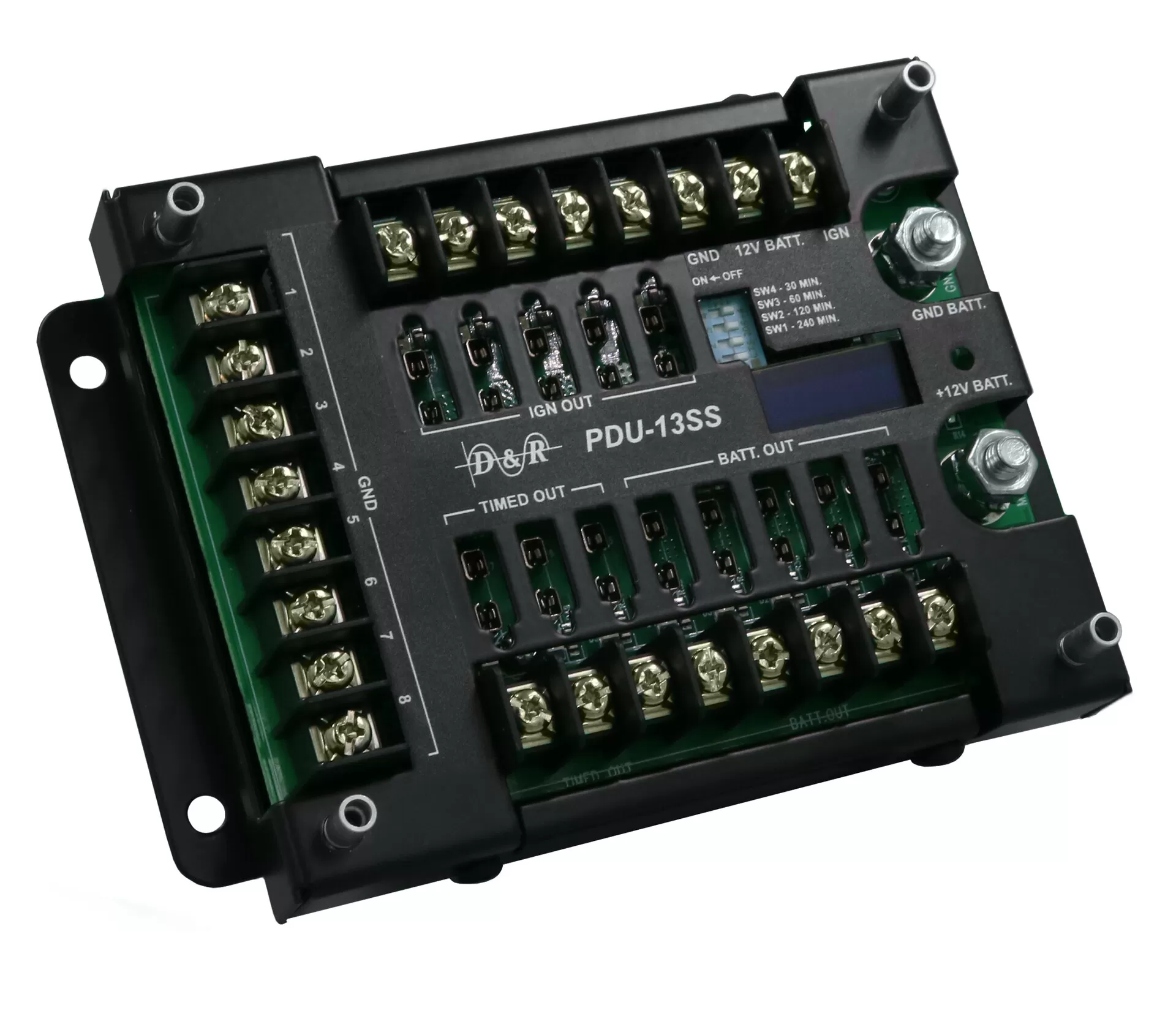

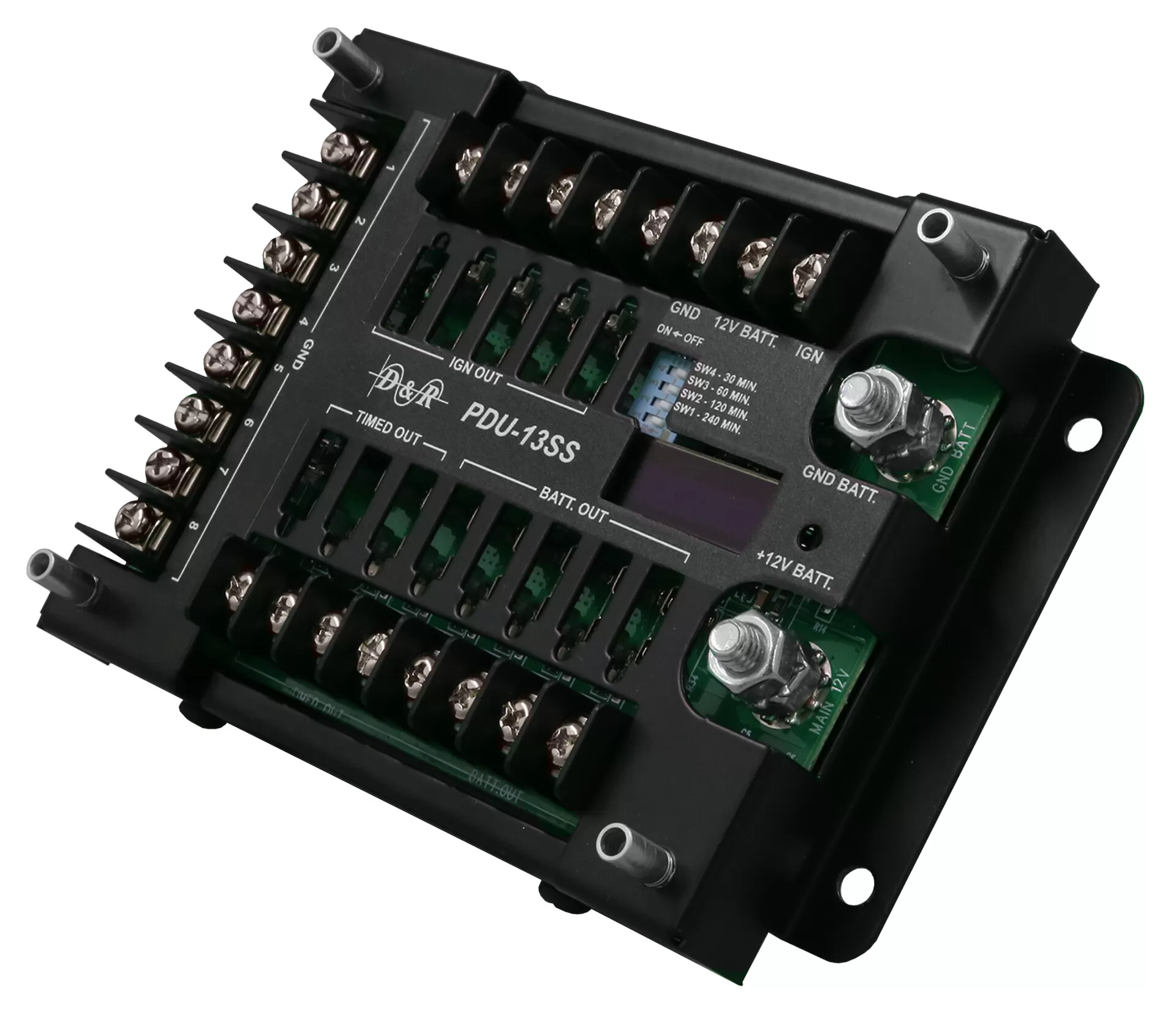

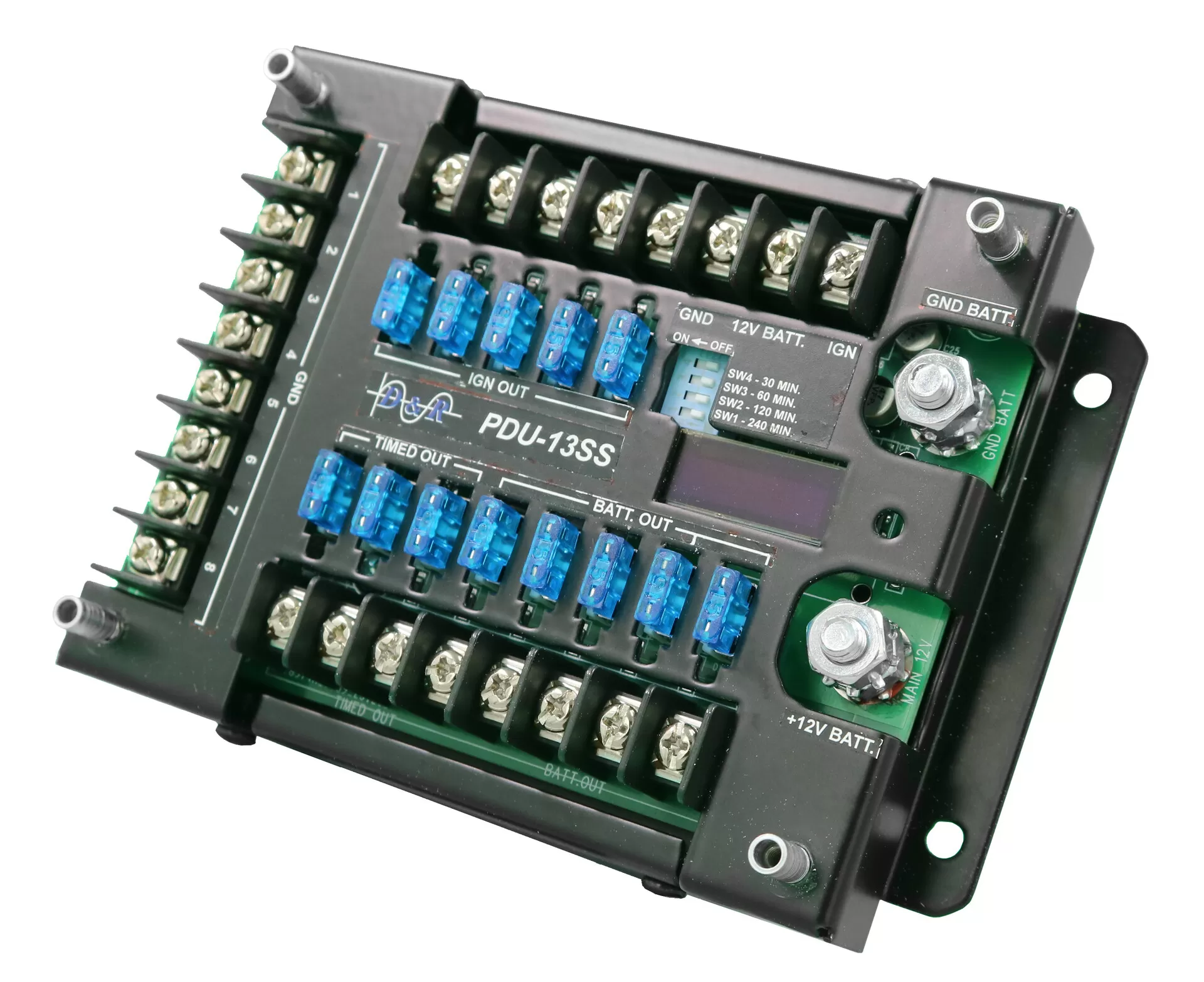

PDU-13SS

Power Distribution Unit - 13SS

· Low Battery Voltage Shutdown at 11.5VDC.

· Programmable Timed Shutdown: 30 min, 60 min, 120 min, 240 min

· Vehicle Battery Voltage Monitoring

· Each output has an LED fuse status indicator

· ZERO Current consumption in Standby Mode

· 13 Outputs (5 battery, 5 Ignition and 3 timed)



Fuse type MINI blade fuse
Height 1.5 inches
Length 6.2 inches
Maximum Current Load 100A total
Maximum Current per Output Terminal 20A
Operating temparature -40° C to +65° C (-40F to +149F)
Output(s) 13 (5 battery, 5 Ignition and 3 timed)
Programmable timed shutdown 30 / 60 / 120 / 240 min
Stand-by Current 0A
Voltage Range 11-18 VDC.
Weight 1.15 Lbs
Width 4.5 inches
Low Voltage Disconnect Factory Default set at 11.5VDC (10 second delay)
